PRE-ORDER REQUIREMENTS top
Pre-order requirements guide.
Before you order, we would like to have the following information to be able to proceed immediately to the price quote. We need the five (5) following things:
1. Chassis length from front to end.
2. Chassis width at the front tires.
3. Chassis width at the back tires.

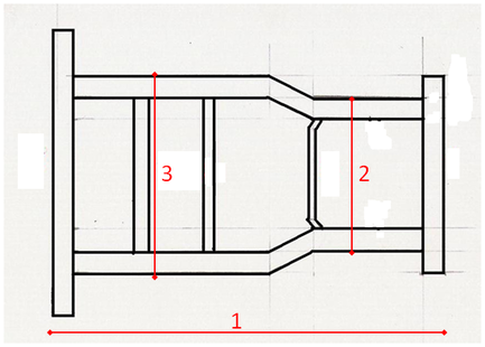

*Note that if you can't determine 2 and 3, you may just tell us the distance between the two tires. The image on the right is a simple sketch of a chassis to guide you with requirements 1 to 3.
4. Number of tire pairs to be installed as a rear tire (single or double pairs). See image below..
5. Type of spring (lift spring or coil spring). See image in the middle below.
6. From the back end of the chassis, measure the distance where the lift spring will be installed. Please give us the center of the lift spring or the two spots where it will be screwed. Picture of a lift spring is shown below.
7. From the back end of the chassis, measure the distance where the center bearing will be installed.
1. Chassis length from front to end.
2. Chassis width at the front tires.
3. Chassis width at the back tires.
*Note that if you can't determine 2 and 3, you may just tell us the distance between the two tires. The image on the right is a simple sketch of a chassis to guide you with requirements 1 to 3.
4. Number of tire pairs to be installed as a rear tire (single or double pairs). See image below..
5. Type of spring (lift spring or coil spring). See image in the middle below.
6. From the back end of the chassis, measure the distance where the lift spring will be installed. Please give us the center of the lift spring or the two spots where it will be screwed. Picture of a lift spring is shown below.
7. From the back end of the chassis, measure the distance where the center bearing will be installed.

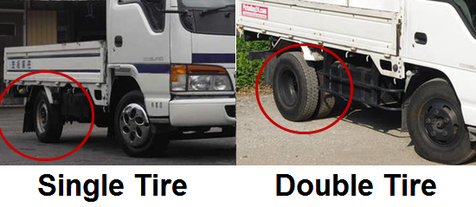

Single or double tire illustration.

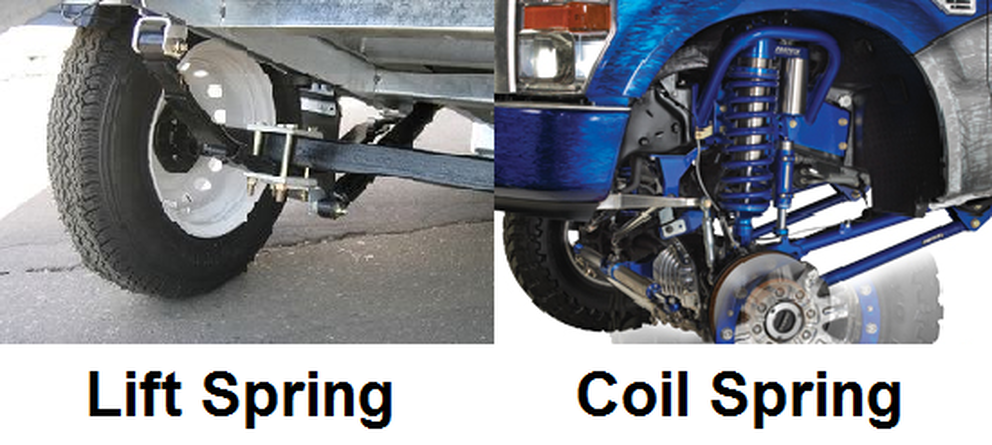

Lift or coil spring.

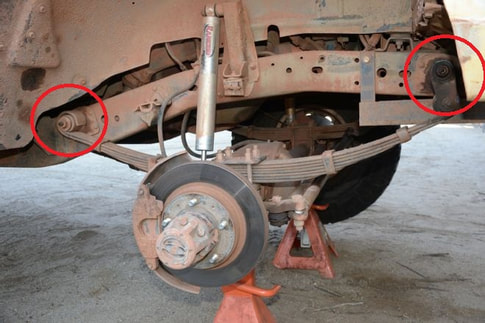

Lift Spring
|

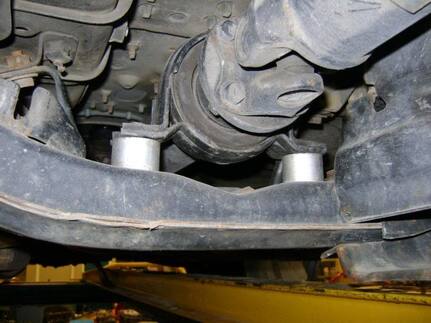

Center Bearing
|
