CZX RIMS

Number 1 Rim manufacturer in China. Partner of Daewoo Trucks and Buses.
Location: No.1608, North Circle Road State Highway, Zhangzhou, Fujian Province, China.

#1 Manufacturer and sales of high-quality commercial rims used by most types of commercial vehicles in China. More than 330 series of tubed, tubeless and off-road steel wheels, has the most diversified product offerings in the Chinese commercial vehicle wheel market.

China Zenix's OEM customers include more than 90 automotive manufacturers in China including leading domestic brands such as SAIC-IVECO Hongyan Commercial Vehicle, Beiqi Foton Motor, Baotou Bei Ben Heavy-Duty Truck, Zhengzhou Yutong, FAW Jiefang Automotive and Dongfeng Motor. Our reputation for producing wheels to custom specifications with the highest standards of safety, strength and durability has continued to drive our growth in this market segment.

We sell to distributors in the aftermarket and directly to leading OEMs including TATA Motors and Mahindra, two of India's leading automotive manufacturers, among others.

China Zenix currently has more than 5,200 dedicated employees and a total production capacity of over 15 million wheel units annually, as of December 31, 2011.

Website: http://www.zenixauto.com/en/
CZX RIMS
DESCRIPTION
SPECIFICATIONS
COMMENT
PRICE
5.50X16X6HX8MM
32.5/164/222.25/115/8MM
650/700-16
1440
6.00X16X6HX10MM
32.5/164/222.25/127/10MM
750-16
1620
6.50X16X6HX10MM
32.5/164/222.25/135/10MM
825-16
2340
6.50X20X6HX12MM
FOR 825X20
825-20
2976
7.00X20X8HX14MM
FOR 1000X20
900-20
3120
7.50X20X10H-26MMX14MM
26/281/335/165/14MM
SKW 1000-20
3300
7.50X20X10H-32MMX14MM
32.5/222/285/165/14MM
1000-20
3300
7.50X20X8HX14MM
32.5/221 1100X20
1000-20
3240
8.00X20X8HX14MM
32.5/221 12.00R20
1100-20
3720
8.50X20X10H-26MMX14MM
26/281/335/175/14MM
1200-20
3960
5.50F-15-5H-32.5MM
CANTER DT
650X15
1320
5.50F-16-5H-32.5MM
CANTER DT
650X16
1380
5.50F-15-6H-18.5MM
CANTER ST
650X15
1320
22.5X8.25 SPOKE-TYPE
DEMOUNTABLE
2820
5.5F-15-5H-29MM
ELF DT
650X15
1320
5.5F-16-5H-29MM
ELF DT
650X16
1380
5.5F-15-6H-17.5MM
ELF ST
650X15
1320
5.5F-16-6H-17.5MM
ELF ST
650X16
1380
TUBELESS 22.5X11.75X10H OFFSET=0
26/281/335/0/14
385/65R22.5
4380
TUBELESS 22.5X11.75X10H OFFSET=120
26/281/335/120/14
385/65R22.5
4380
TUBELESS 22.5X13.00X10H OFFSET=0
26/220/285.75/0/16
425/65R22.5
8400
TUBELESS 22.5X13.00X10H OFFSET=91
26/220/285.75/91/16
425/65R22.5
8400
TUBELESS 22.5X8.25X10H
26/220/285.75/169/14MM
11R22.5 IH INTERNATIONAL
3240
TUBELESS 22.5X8.25X10H
26/281/335/169/14MM
11R22.5 MAN/SKW
3240
TUBELESS 22.5X8.25X10H
32.5/222/285.75/169/14MM
11R22.5
3180
TUBELESS 22.5X8.25X8H
SHIGONG BLUE
11R22.5
3660
TUBELESS 22.5X8.25X8H
SHIGONG SILVER
11R22.5
3660
TUBELESS 22.5X8.25X8H
SHIGONG WHITE
11R22.5
3660
TUBELESS 22.5X8.25X8HX14MM
32.5/221/285/169/14MM
11R22.5
3120
TUBELESS 22.5X8.25X8HX16MM
32.5/221/285/169/16MM
11R22.5
3300
TUBELESS 22.5X9.00X10H
26/220/285.75/175/14MM
12R22.5
3480
TUBELESS 22.5X9.00X10H
26/281/335/175/14MM
12R22.5 IHC / RTMI
3480
TUBELESS 22.5X9.00X10H
32.5/222/285.75/175/14MM
12R22.5
3480
TUBELESS 22.5X9.00X8H
32.5/221/285/175/14MM
12R22.5 FUSO
3480
650-15-6H 5.50E-15"
ELF ST
RIM LOCK
264
650-16-6H 5.50E-16"
ELF ST
RIM LOCK
288
RP6.50-6H-12MM
RIM PLATE
1020
RP7.50-8H-14MM
RIM PLATE
1140
PRICES ARE SUBJECT TO CHANGE WITHOUT NOTICE

TRUCK RIM TECHINICAL SPECIFICATIONS

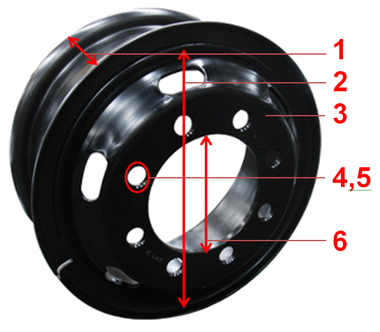

TUBE TYPE TRUCK RIM
7.50X20X10H-32MMX14MM (32/222/285/165/14MM)
Code legend:
1 - 7.50 inch rim width
2 - 20 inch rim diameter
3 - 14MM center plate thickness
4 - 10H number of screw holes
5 - 32MM diameter of screw hole
6 - 222 diameter of center hole in milimeter

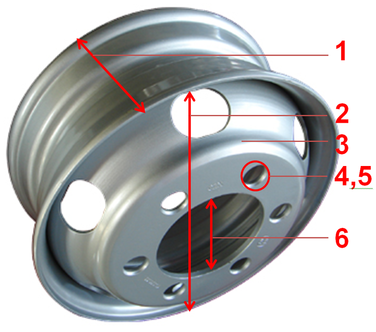

TUBELESS TRUCK RIM
22.5X8.25x10H-32MMX14MM (32.5/222/285/175/14MM)
Code Legend:
1 - 8.25 inch rim width
2 - 22.5 inch rim diameter
3 - 14MM center plate thickness
4 - 10H number of screw holes
5 - 32MM diameter of screw hole
6 - 222 diameter of center hole in milimeter
